Mechatronic locking elements – the intelligent way to allow access

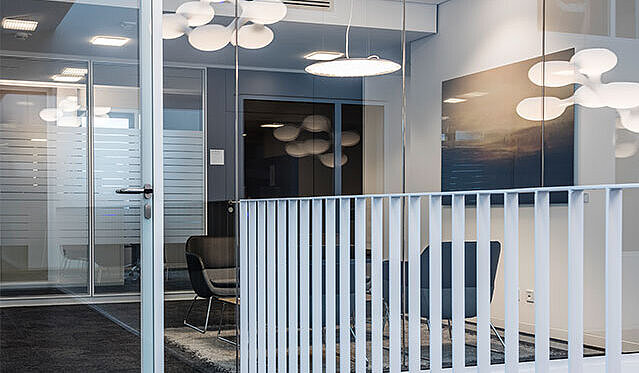

The mechatronic locking elements hilock 2200 are used to open and close a door. Mechatronic locking elements include digital lock cylinders and digital door handles with an integrated RFID reader.

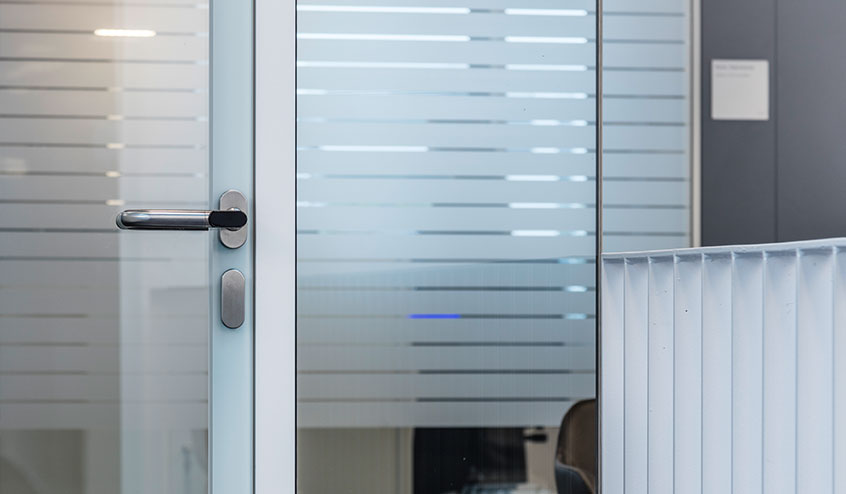

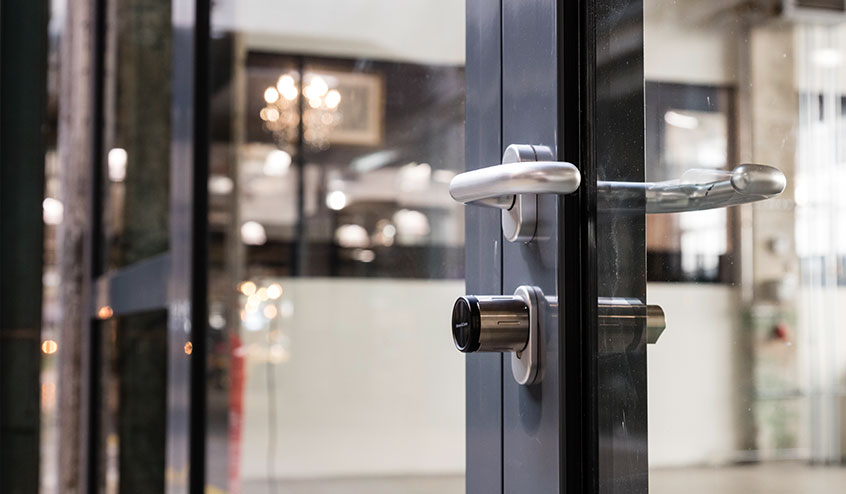

The mechatronic locking elements add intelligent access to the TELENOT intruder and hazard alarm control panels. If an authorized transponder is read, the knob module couples into the lock cylinder if digital lock cylinders are used, and you can unlock or lock the door. If digital door handles are used, the door handle couples in. The mechatronic locking elements are suitable for indoor and outdoor use. Mechatronic locking elements with degree of protection IP66 (variant with all-weather protection) are available especially for outdoor applications.

The mechatronic locking elements hilock 2200 are used to realize two applications.

Connection with a hazard and intruder alarm system

The mechatronic locking element uses the built-in RFID reader to record transponder data, which it then transmits wirelessly to the transceiver hilock 203 / 213. The use of a digital lock cylinder or door handle avoids the complex installation and activation of a blocking element and a door strike.

The transceiver hilock 203 / 213 is connected to the intruder alarm control panel via the com2BUS. The hilock 213 UFM transceiver is wirelessly connected to the intruder alarm control panel. The connection with the IACP has the benefit that the transponders can be parameterized using the IACP parameterization software. In this way, transponders can be changed, deleted, or added either on site or by remote service. Authorizations can also be assigned to individual transponders later on.

During operation, a distinction is made between presenting the transponder to the mechatronic locking element briefly or for a longer period. As a result, authorizations such as setting/unsetting and access authorization are possible with the same transponder.
