The early fire detection capability of the TELENOT multi-sensor detectors is based on wired conventional technology. What sets this detector apart is its intelligent evaluation of both the measuring chamber signal and the temperature signal. The OR linking of the two parameters ensures a high degree of operational reliability, which minimizes the risk of false alarms while also enabling rapid reaction to actual hazards. This guarantees early detection of smoldering fires, fires with rapid rises in temperature, and open fires.
Maximum reliability guaranteed
The multi-sensor detector offers numerous practical advantages for contract partners. The alarm output for activating a floating relay contact simplifies integration into existing security systems. The reliability of the detector is further enhanced by technical features, such as optical sensor technology in compliance with EN 54-7, thermal sensor technology in compliance with EN 54-5, and signaling using a red LED in case of an alarm. It also offers an extended surveillance area of up to 110 square meters.
For reliable indoor protection

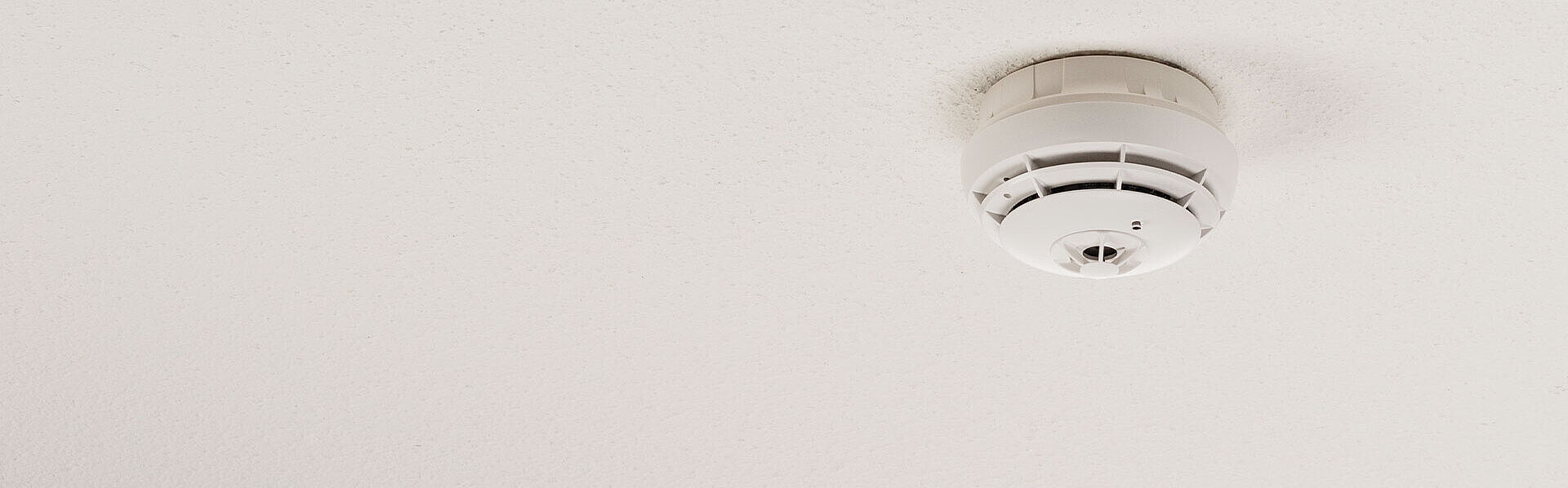

Thanks to their compact and appealing design with dimensions of 100 x 49.5 mm and a pure white finish, the multi-sensor detectors from TELENOT blend unobtrusively into their surroundings. The IP40 degree of protection means it can be used indoors and in temperature ranges from -10 °C to +60 °C.
Note!
Connecting this smoke detector to an intelligent intruder and hazard alarm control panel does not result in a fire detection and fire alarm system as defined by VDE 0833 part 2, DIN VDE V 0826-2, DIN 14675 or EN 54!
